Tutorial 1: Importing Data

Download Notebook Open In Colab

This tutorial shows how to import DIA-NN or Proteome Discoverer (PD) outputs into a pAnnData object.

scpviz currently supports:

  • Proteome Discoverer (tested on versions 2.5 and 3.2)
  • DIA-NN (tested on versions 1.8.1, 2.0, and 2.1)

pAnnData objects integrate protein and peptide level data:

  • DIA-NN reports contain everything required.
  • PD protein exports are required; peptide exports are optional but recommended for peptide-level filtering and analysis.

Encoding metadata

It’s important to encode metadata about samples (e.g., knockdown vs scrambled control) for downstream grouping, filtering, and visualization.

In DIA-NN, sample metadata should be encoded in the raw filenames. For example:

Example DIA-NN filename
20251106_Caltech-Marion_Astral_25min_Aur25cm_KD-01.raw

Split by _, the tokens become:

  • date: 20251106
  • user: Caltech-Marion
  • mass spectrometer: Astral
  • gradient length: 25min
  • column: Aur25cm
  • sample condition + replicate: KD-01

The .raw extension is automatically dropped during metadata parsing.

In Proteome Discoverer, metadata is encoded via categorical variables in the study design. Typical steps:

  1. Create a categorical variable (e.g. sample_condition) on the study page.
  2. Add possible values (e.g. control, kd).
  3. Assign values in the Samples tab.

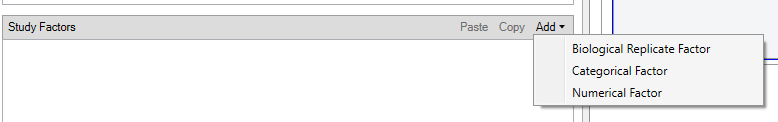

PD categorical variable setup
Example PD study setup with categorical variables.

Note

scpviz automatically detects and assigns a delimiter based on the most frequent character. If that fails, specify your own via the delimiter argument during import.

During import, scpviz checks filename token lengths and suggests .obs column names if they are uniform. If filenames contain multiple token lengths, they are grouped as parsingType = "10-tokens", "6-tokens", etc.

Loading DIA-NN reports

Download DIA-NN Report File

For DIA-NN, the report.parquet file is all you need. It includes peptide-level detail for each file, allowing scpviz to build the protein–peptide matrices.

Import DIA-NN data
from scpviz import pAnnData as pAnnData

obs_columns = ["user", "date", "ms", "acquisition", "faims", "column", "gradient", "amount", "region", "rep"]
pdata = pAnnData.import_data(
    source_type="diann",
    report_file="diann_report.parquet",
    obs_columns=obs_columns,
)
output
🧭 [USER] Importing data of type [diann]
--------------------------
Starting import [DIA-NN]

Source file: diann_report.parquet
Number of files: 12
Proteins: 12652
Peptides: 251047
    ...
    ✅ [OK] pAnnData object is valid.
    ✅ [OK] Import complete. Use `print(pdata)` to view the object.
--------------------------

Loading Proteome Discoverer (PD) reports

Download PD3.2 Proteins File Download PD3.2 Peptides File

Download PD2.5 Proteins File Download PD2.5 Peptides File

Export requirements

For PD, we recommend modifying the export layout to include raw abundances (typically Abundances). The default layout is usually scaled abundance, which is not ideal for quantitative workflows. For convenience, here is a custom layout file that you can load into PD: pd_scpviz_layout.pdLayout

Proteome Discoverer allows export of specific tabs. We recommend exporting as tab-delimited text (Excel is supported but much larger in file size and thus slower to load).

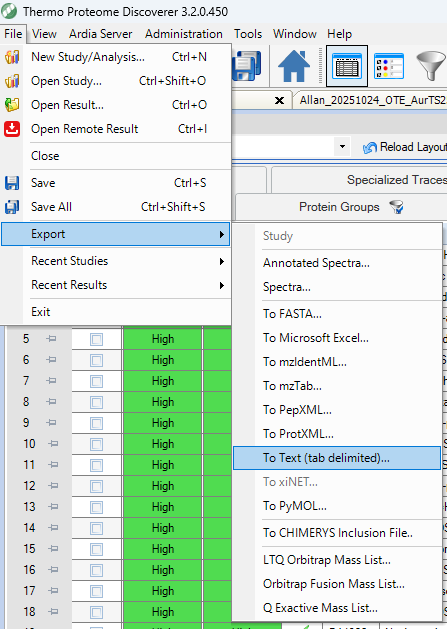

PD export settings
Recommended PD export tabs and layout.

Make sure to export at minimum the following tabs:

  • Protein
  • (optional, but recommended) Peptide Groups (PD2.5) or Peptide Sequence Groups (PD3.2)

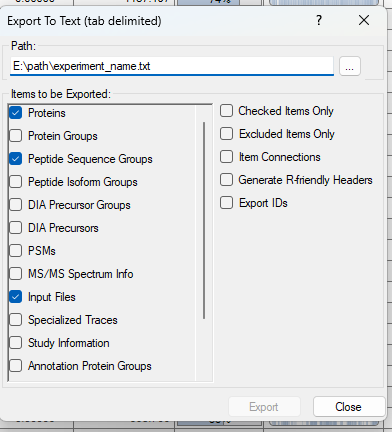

PD export selection
Required PD export selections.

Import

Import Proteome Discoverer 3.2 data
from scpviz import pAnnData as pAnnData

prot_file_path = "pd32_Proteins.txt"
pep_file_path = "pd32_PeptideSequenceGroups.txt"
obs_columns = ['sample', 'cellline', 'treatment', 'condition', 'day']

pdata = pAnnData.import_data(
    source_type="pd",
    prot_file=prot_file_path,
    pep_file=pep_file_path,
    obs_columns=obs_columns,
)
output
🧭 [USER] Importing data of type [pd]
--------------------------
Starting import [Proteome Discoverer]

Source file: pd32_Proteins.txt / pd32_PeptideSequenceGroups.txt
Number of files: 12
Proteins: 10393
Peptides: 167114
    ...
    ✅ [OK] pAnnData object is valid.
    ✅ [OK] Import complete. Use `print(pdata)` to view the object.
--------------------------
Import Proteome Discoverer 2.5 data
from scpviz import pAnnData as pAnnData

prot_file_path = "pd25_Proteins.txt"
pep_file_path = "pd25_PeptideGroups.txt"
obs_columns = ['sample', 'cellline', 'condition']

pdata = pAnnData.import_data(
    source_type="pd",
    prot_file=prot_file_path,
    pep_file=pep_file_path,
    obs_columns=obs_columns,
)
output
🧭 [USER] Importing data of type [pd]
--------------------------
Starting import [Proteome Discoverer]

Source file: pd25_Proteins.txt / pd25_PeptideGroups.txt
Number of files: 12
Proteins: 4988
Peptides: 30920
    ...
    ✅ [OK] pAnnData object is valid.
    ✅ [OK] Import complete. Use `print(pdata)` to view the object.
--------------------------

Note

PD uses global FDR (unlike DIA-NN, which provides per-precursor / per-protein FDR). This does not affect import but may influence downstream filtering decisions.

Gene name recovery

During import, scpviz automatically checks for proteins with missing gene names and queries UniProt to recover them.

Example UniProt gene name recovery
ℹ️ 25 proteins with missing gene names.
     🌐 [API] Querying UniProt for batch 1/1 (25 proteins) [fields: accession, gene_primary]
     ✅ Retrieved UniProt metadata for 25 entries.
     ✅ [OK] Recovered 24 gene name(s) from UniProt. Genes found:
         TUFM, HDLBP, AMPD2, MYG1, HSD17B11, PCM1, NEFH, OXA1L, TRMT5, SLC4A1AP...
     ⚠️ [WARN] 1 gene name(s) still missing. Assigned as 'UNKNOWN_<accession>' for:
         Q6ZSR9
     💡 Tip: You can update these using `pdata.update_identifier_maps({'GENE': 'ACCESSION'}, on='protein', direction='reverse', overwrite=True)`

Proteins without gene names after UniProt lookup are assigned as UNKNOWN_<accession> and can be manually updated later if needed using pdata.update_identifier_maps().

Metadata parsing

Sample metadata (columns in .obs) can be inferred directly from filenames:

Inspect inferred metadata
pdata.summary

Updates to .summary are automatically pushed to .prot.obs and .pep.obs (if available). If scpviz can’t infer whether a change is intentional, you’ll be prompted to run pdata.update_summary().

When filenames follow a single format

If all filenames share the same number of tokens, scpviz will suggest obs_columns from the first filename and ask you to confirm or edit them. This is common for PD exports when filenames encode basic sample info.

output
🧭 [USER] Importing data of type [pd]
      Auto-detecting ',' as delimiter from first filename.
ℹ️ Filenames are uniform. Using `suggest_obs_columns()` to recommend obs_columns...

From filename: Sample, AS, RA, kd, d7
Suggested .obs columns:
  unknown??                 : Sample
  unknown??                 : AS
  unknown??                 : RA
  condition                 : kd
  unknown??                 : d7
Unrecognized token(s): ['Sample', 'AS', 'RA', 'd7']
Please manually label these.

ℹ️ Suggested obs:
obs_columns = ['<Sample?>', '<AS?>', '<RA?>', 'condition', '<d7?>']
     ⚠️ [WARN] Please review the suggested `obs_columns` above.
   → If acceptable, rerun `import_data(..., obs_columns=...)` with this list.

In this case, you should fill in obs_columns with meaningful labels and rerun the import. For example:

Provide obs_columns for uniform filenames
obs_columns = ["sample", "cellline", "treatment", "condition", "day"]
pdata = pAnnData.import_data(
        source_type="pd",
        prot_file=prot_file_path,
        pep_file=pep_file_path,
        obs_columns=obs_columns,
)

If filenames follow multiple formats, use parse_filename_index to handle different token lengths.

Parse 10-token and 6-token filename groups
pdata.summary = scutils.parse_filename_index(
    pdata.summary,
    obs_columns=["date", "acquisition", "sample_id", "size", "confirmation", "thickness", "type", "organism", "region", "well_position"],
    condition='parsingType == "10-tokens"',
)

pdata.summary = scutils.parse_filename_index(
    pdata.summary,
    obs_columns=["date", "sample_id", "size", "thickness", "organism", "region"],
    condition='parsingType == "6-tokens"',
)
Parse all filenames with a single schema
pdata.summary = scutils.parse_filename_index(
    pdata.summary,
    obs_columns=["date", "acquisition", "size", "buffer", "well_position"],
)
